Energy Storage

From residential and commercial systems to large-scale grid applications

  • 01 Efficient and convenient

    Efficient and convenient, safe and assured

  • 02 Stable and safe

    The most stable and secure battery management system

  • 03 Experienced

    20 years of research and development experience in battery field

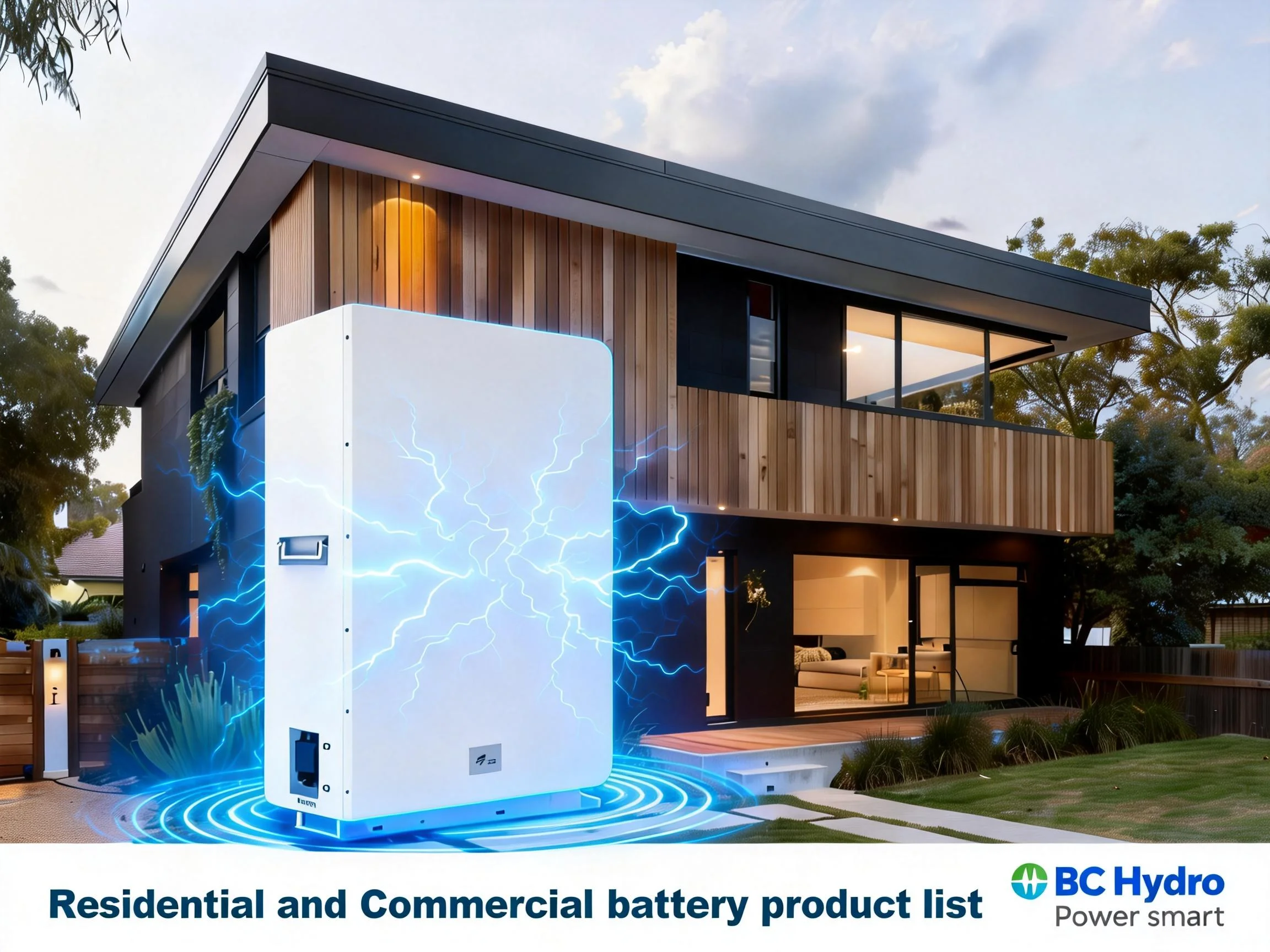

51.2V 280Ah LiFePO4 Battery
Residential Energy Storage
  • Long life and safety: Vertical industry integration ensures more than 8500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
  • Intelligent: Each battery with independent BMS system manages power output smartly and effectively.
  • Modularization: Modular design gives the end customers the power of choice of capacity. Deliver up to 229KW with single max module (14.34KWh) at 16pcs parallel connection.
  • Easy to install and use: Just plug and play to minimize the installation time and cost. Compact and fashionable design fits in your sweet home environment.
  • Compatibility: Compatible with most of the available Hybrid inverters.
  • Safety Cert: UL9540A, UL1973, CB-IEC62619, CE-EMC, UN38.3, MSDS.
Product Parameters
Nominal Parameters
Battery Chemistry
LiFePO4
Voltage
51.2V
Operating Voltage
46-56V
Capacity
280Ah
Energy
14.34Kwh
Scalability
Max.16pcs in parallel (229kWh)
Usable Energy
12.91Kwh
Charge/Discharge Current (Recommend)
100A
Charge/Discharge Current (Max.)
150A
Charge/Discharge Current (Peak, 2mins, 25℃)
200A
Basic Parameters
Recommend Depth of Discharge
90%
Dimension (W/H/D)
900×675×200mm / 35.4×26.6×7.8 in
Weight Approximate
128.5kgs / 283 lbs
Master LED Indicator
4 LED (SOC:25%~100%)；2 LED (working, alarming, protecting)
IP Rating of Enclosure
IP65
Working Temperature
Charge: 0℃ ~ 55℃；Discharge: -20℃ ~ 55℃
Storage Temperature
0℃ ~ 35℃
Humidity
5%~95%
Altitude
≤2000m
Cycle Life (25±2℃, 0.5C/0.5C, 80% EOL)
≥8500
Installation
Wall-mounted
Communication Port
CAN2.0, RS485
Warranty Period
15 years
Life Cycle Power During Warranty Period
64.80MWh @ 80% EOL
Certification
UL1973, UL9540A, CB-IEC62619, CE-EMC, UN38.3, MSDS

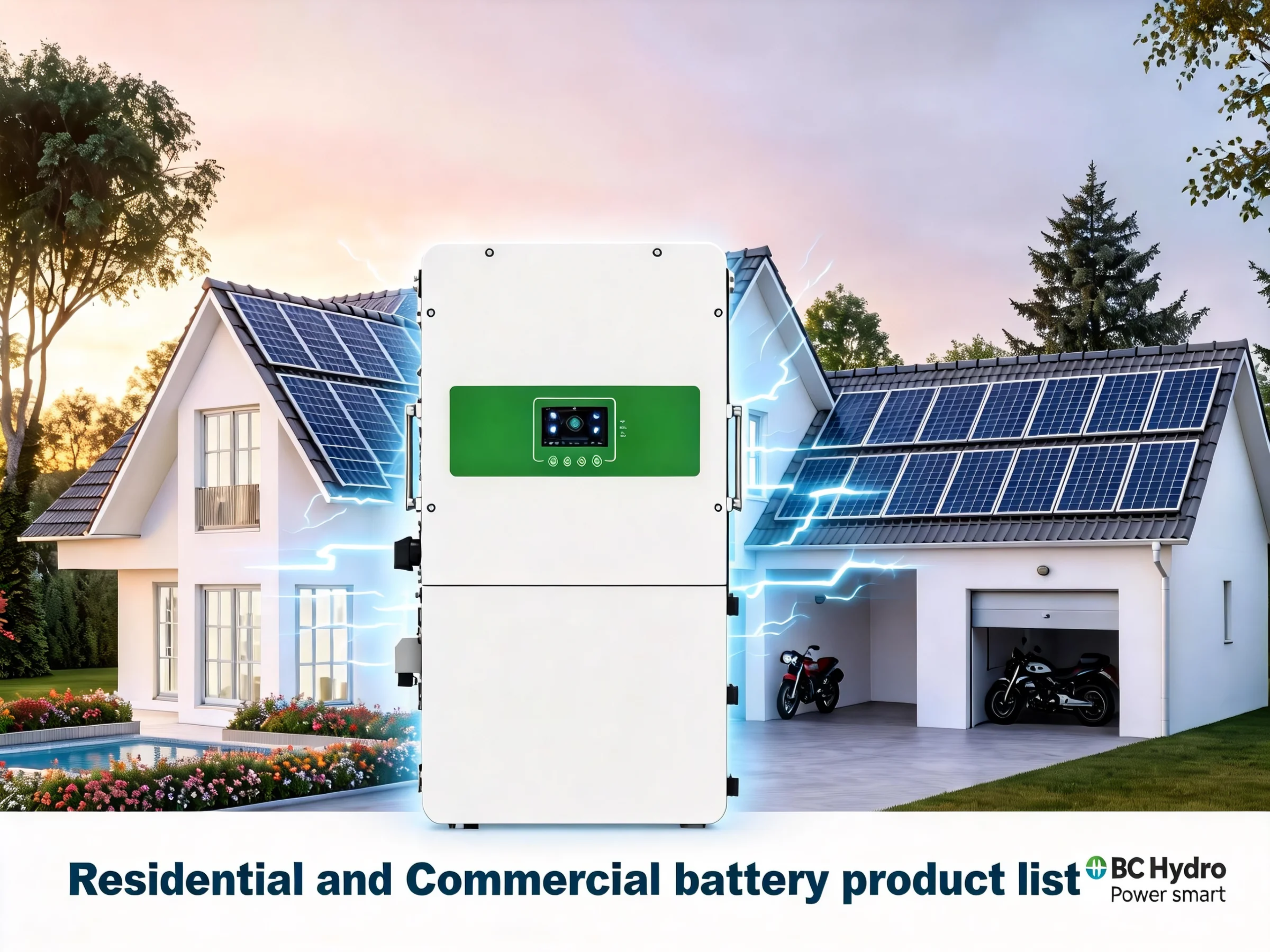

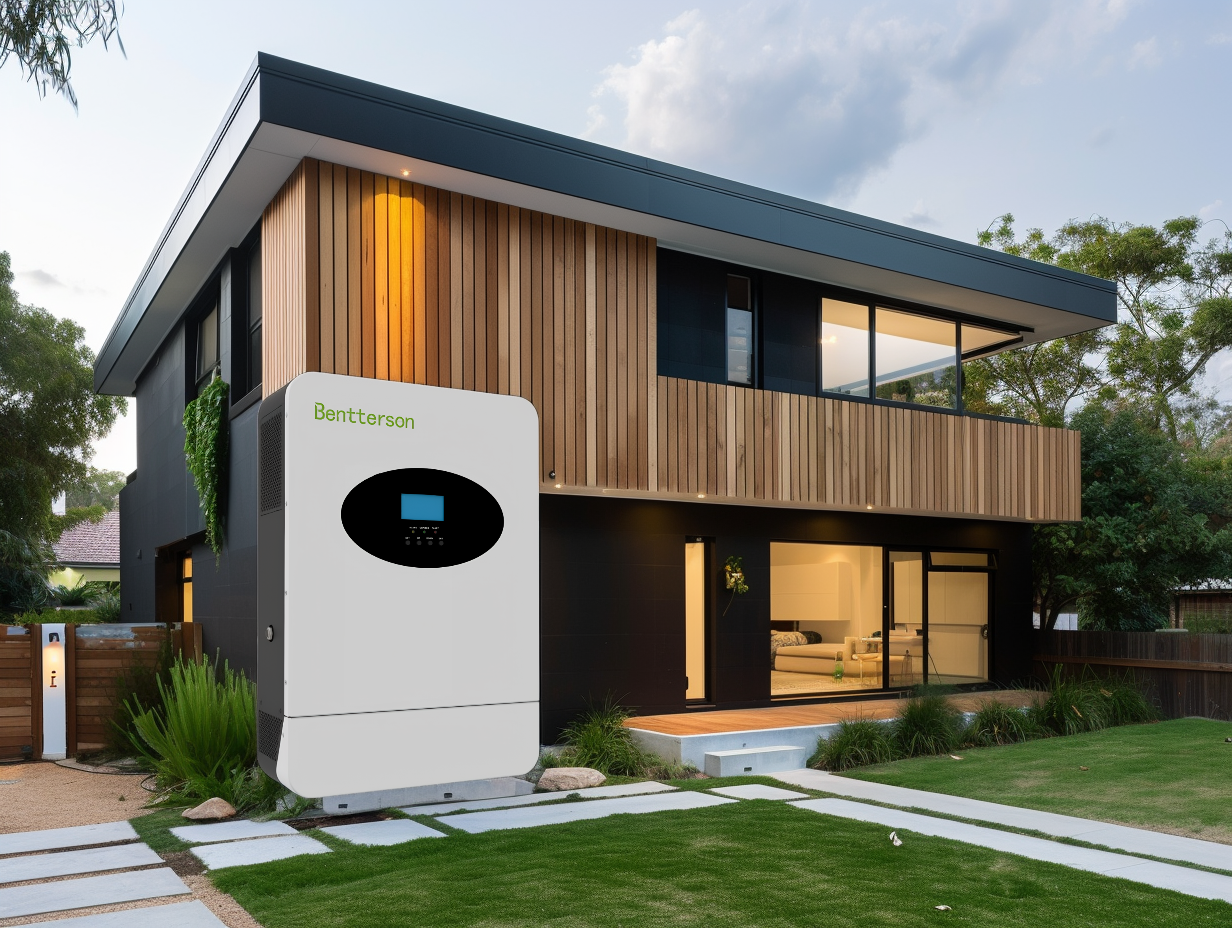

Residential Energy Storage
Residential Energy Storage System
  • Efficiency: Compatible with 48V storage batteries.
  • Convenient Installation: Separate generator port.
  • All-in-One: Support time-slot function for peak-valley.
  • Reliable: 2 efficient, independent MPPT ports.
  • Safety: IP65 waterproof protection degree.
  • Intelligent: Support AC-coupling.
Product Parameters
INVERTER OUTPUT
Model
HSLV8KNA / HSLV10KNA / HSLV12KNA
Rated Output Power
8800W / 10000W / @240V 12000W / @208V 10400W
Maximum Peak Power
1.5 times rated power
Rated Output Voltage
120/240Vac (Split-phase) / 120/208V (Three-phase)
Output Current
@240V 36.6A / @208V 42.3A
Motor Load Capacity
5HP / 6HP
Rated AC Frequency
50/60Hz
Waveform
Pure Sine Wave
Parallel Capacity
1 to 6 units (2 or more units can form a three-phase output)
PV INPUT
Max. PV Array Power
6600W / 6600W / 7500W / 7500W / 9000W / 9000W
Max. Input Current
32A / 32A / 32A / 32A / 40A / 40A
Short Circuit Current Isc
40A / 40A / 40A / 40A / 40A
Max. Open-circuit Voltage
550Vdc / 550Vdc / 550Vdc / 550Vdc / 550Vdc
MPPT Operating Voltage Range
125 ~ 450Vdc / 125 ~ 450Vdc / 125 ~ 450Vdc / 125 ~ 450Vdc / 125 ~ 450Vdc
Num. of MPP Trackers
2
GENERAL
Dimensions
840×440×260mm
Weight
48kg
Protection Degree
IP65
Operating Temperature Range
-25~60°C, >45°C derated
Noise
<60dB
Self-consumption
<100W
Cooling Method
Heat sink + intelligent fan cooling
BATTERY
Battery Type
Li-ion / Lead-Acid / User Defined
Rated Battery Voltage
48Vdc
Battery Voltage Range
40 ~ 60Vdc
Max. PV Charging Current
200A
Max. T
2
MAINS / GENERATOR INPUT
Input Voltage Range
90 ~ 140Vac
Frequency Range
50/60Hz
Max. Continuous Bypass Current
200A
Generator Charging Current
90A
Max. Hybrid Charging Current
240A
Efficiency
MPPT Tracking Efficiency
99.9%
Max. Efficiency
97.5%
CEC Efficiency
96.5%
COMMUNICATION
Embedded Interfaces
RS485 / CAN / USB / Dry contact
External Modules (optional)
Wi-Fi / GPRS
CERTIFICATION
Safety Standards
UL1741&IEEE1547.1-2020, CEC, RULE 21, HECO
EMC
FCC 15 class B
RoHS
Yes

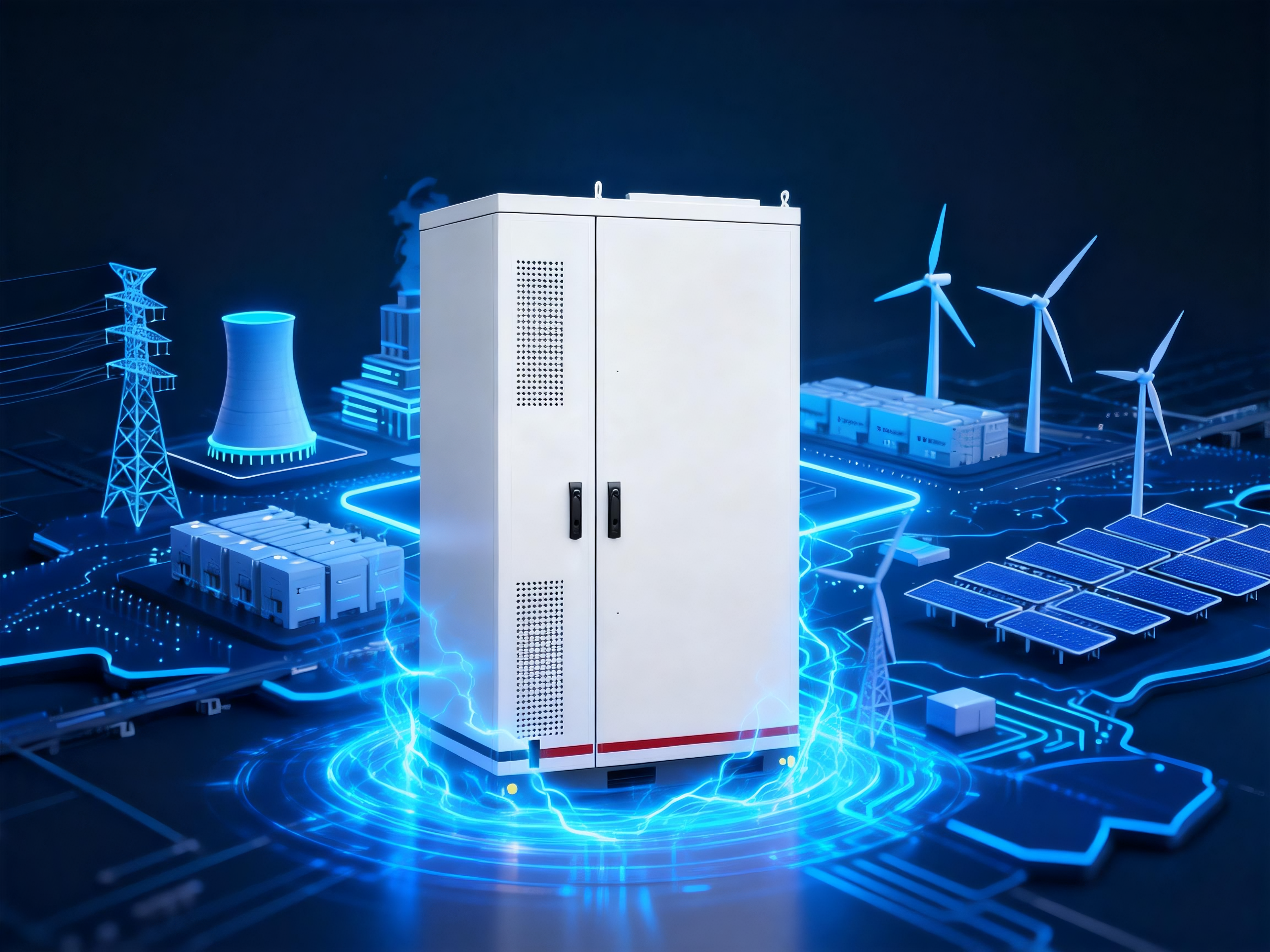

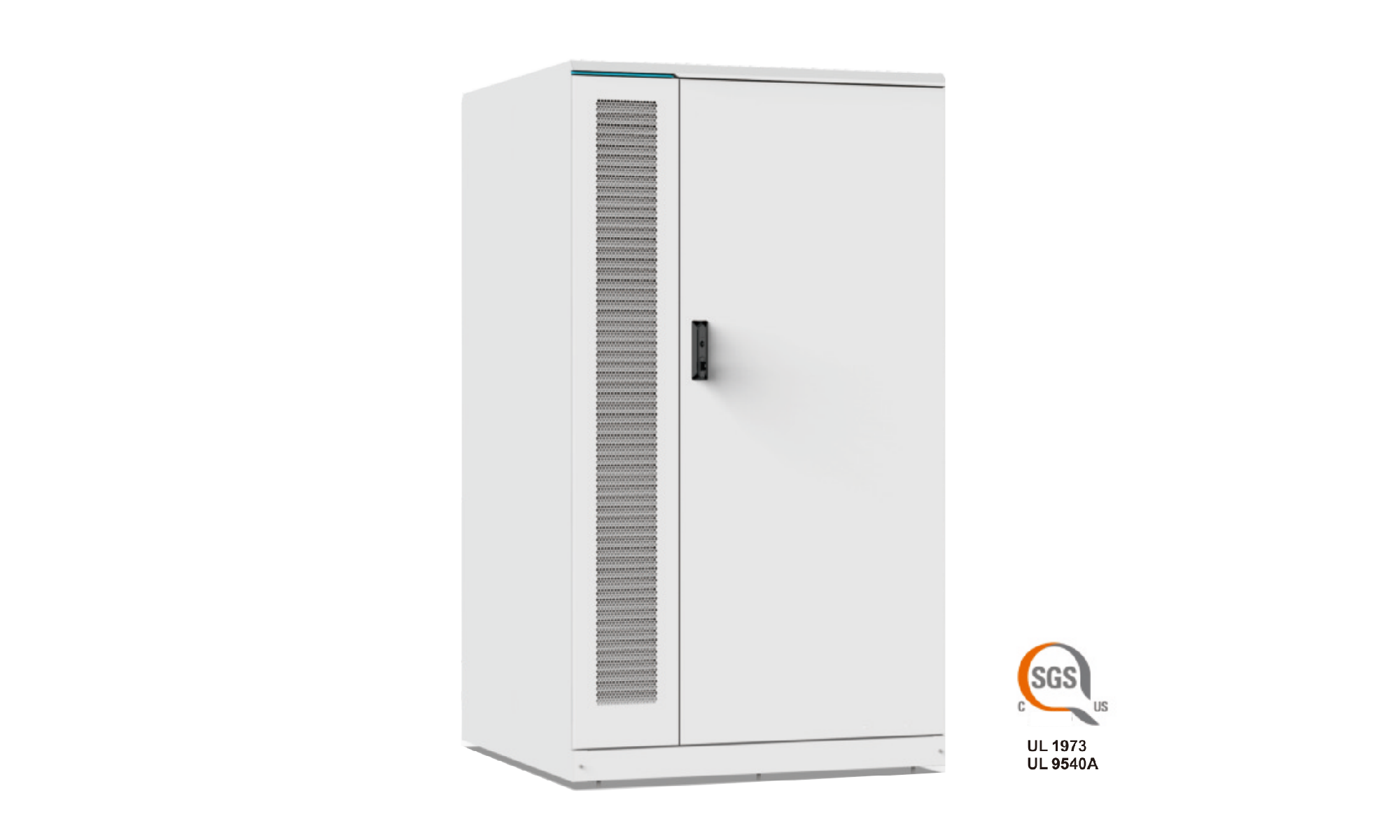

Commercial and industrial energy storage
Commercial and industrial energy storage
  • Safety: Advanced 3-level fire protection with IP67 enclosure and intelligent thermal prediction.
  • Reliability: ≥8000 cycles with 15-year warranty; financial institution recognized.
  • Performance: High RTE efficiency with intelligent temperature control and grid-connected capability.
  • Transparency: Uses 300Ah LiFePO4 cells from reputable first-tier manufacturers (new A-grade cells).
  • Intelligence: Smart control with data mining for maximum product value.
  • Certification: UL certified for export-grade quality.
  • Environmental Adaptability: IP55 protection grade; reliable performance in harsh environments.
  • Technology: Master core technologies for advanced terminal products.
Product Parameters
Product & Battery Specification
Product Type
CFGE-400-200TL
Battery Type
Lithium Iron Phosphate (LFP)
Wiring Type
1P416S (1P52S*8)
Voltage Range
1040–1497.6VDC
System Capacity
400kWh
Battery Life Cycle
≥8000 cycles (DOD 90%, SOH 70%)
Weight
≤3650kg
Dimension (W×D×H)
1313.2×1300×2402mm
Communication Port
CAN/RS485/Ethernet
Software & Technical Specification
Peak Cut
Standard
Utility Grid Connect/Disconnect
Standard
Fire Control
Cabin level fire fighting; aerosol medium; Contains fire extinguishing device, temperature detector and smoke detector
Wiring Type
Quick Plug
Operating Temperature
-30~50℃
Operating Humidity
≤90%
Operating Altitude
≤2500m
Protection Class
IP55 (Battery cabinet and electrical cabinet)
Cooling Method
Liquid Cooling
Anti-Corrosion Class
C4
Install Location
Outdoor
20 ft 5MWh Battery Energy Storage Container
20 ft 5MWh Battery Energy Storage Container
  • High Efficiency: Mirror design field layout (side-by-side and back-to-back arrangement) increases land use efficiency.
  • High Flexibility: High scenario adaptability, supporting 2h and 4h energy storage scenarios with high compatibility with mainstream PCS in market.
  • High Safety: Self-developed cells undergo multi-step safety tests before delivery; pack adopts multi-level thermal insulation and flame retardancy to bungalow; container is equipped with multi-level fire protection configurations compliant with NFPA855, NFPA68, and NFPA69.
Product Parameters
Product Specification
Product Specification
M5 APEX
Cell Capacity (Ah)
314Ah
Configuration
12P416S
Nominal Energy (MWh)
5.015MWh
Nominal Charge/Discharge Rate
0.5P/0.5P
DC Output Number
1/2/12
BMS Balancing Strategy
Active Balancing/Passive Balancing
Range of Working Voltage (V)
1164.8–1497.6V
Nominal Voltage (V)
1331.2V
Cell & System Specification
Range of Working Temperature (°C)
-30–55°C
Operating Humidity
0–100%
Fire Protection
NFPA69/NFPA68
Thermal Management
Liquid Cooling + Liquid Heating
System Communication
RS485/CAN/Ethernet
IP Protection
IP55
Dimension (LWH mm)
6058mm × 2438mm × 2896mm (20ft)
Container Layout
Side-by-side and back-to-back layout supported
Weight (T)
42.5T
