Pack

Customized design and manufacturing of lithium battery packs, including stationary BESS, electric vehicles, electric boats, robots, AGVs, drones, golf carts, and electric lawnmowers.

  • 01 Efficient and convenient

    Efficient and convenient, safe and assured

  • 02 Stable and safe

    The most stable and secure battery management system

  • 03 Experienced

    20 years of research and development experience in battery field

Compact AGV Weeder Battery Pack

Product Parameters
Rated Voltage
51.52V
Rated Energy
2.06kWh
Continuous Charge Current
40A
Continuous Discharge Current
40A
Charging Operating Temperature
-0~60°C
Discharging Operating Temperature
-20~60°C
System Dimensions
355×320×127mm
System Weight
27±1kg

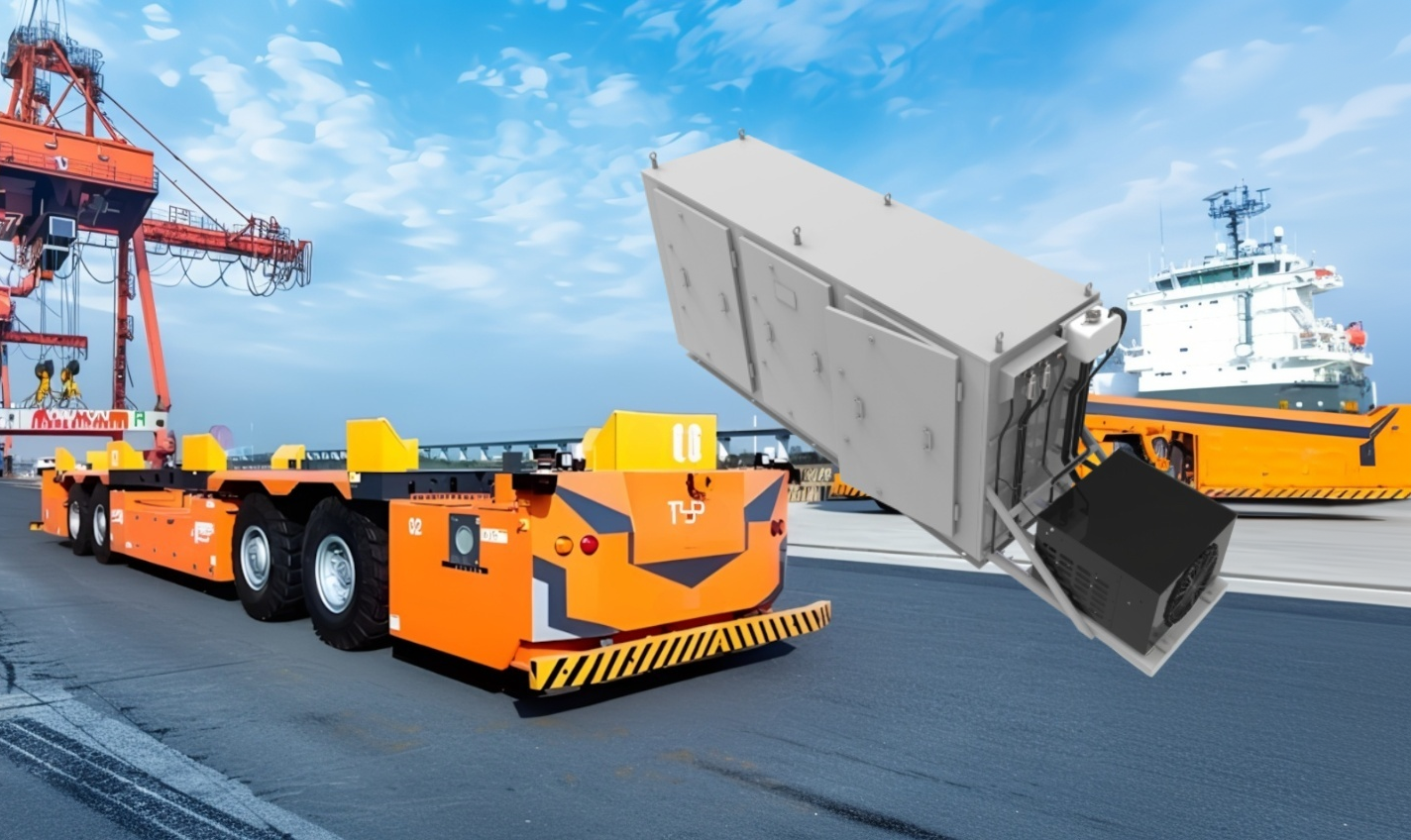

Port-use Heavy-duty AGV Battery Pack

Product Parameters
Rated Voltage
DC625.6V
Rated Energy
50.04kWh
Continuous Charge Current
240A
Continuous Discharge Current
180A
Charging Operating Temperature
-30°C ~ 55°C
Discharging Operating Temperature
-30°C ~ 55°C
System Dimensions
3092×712×1150mm

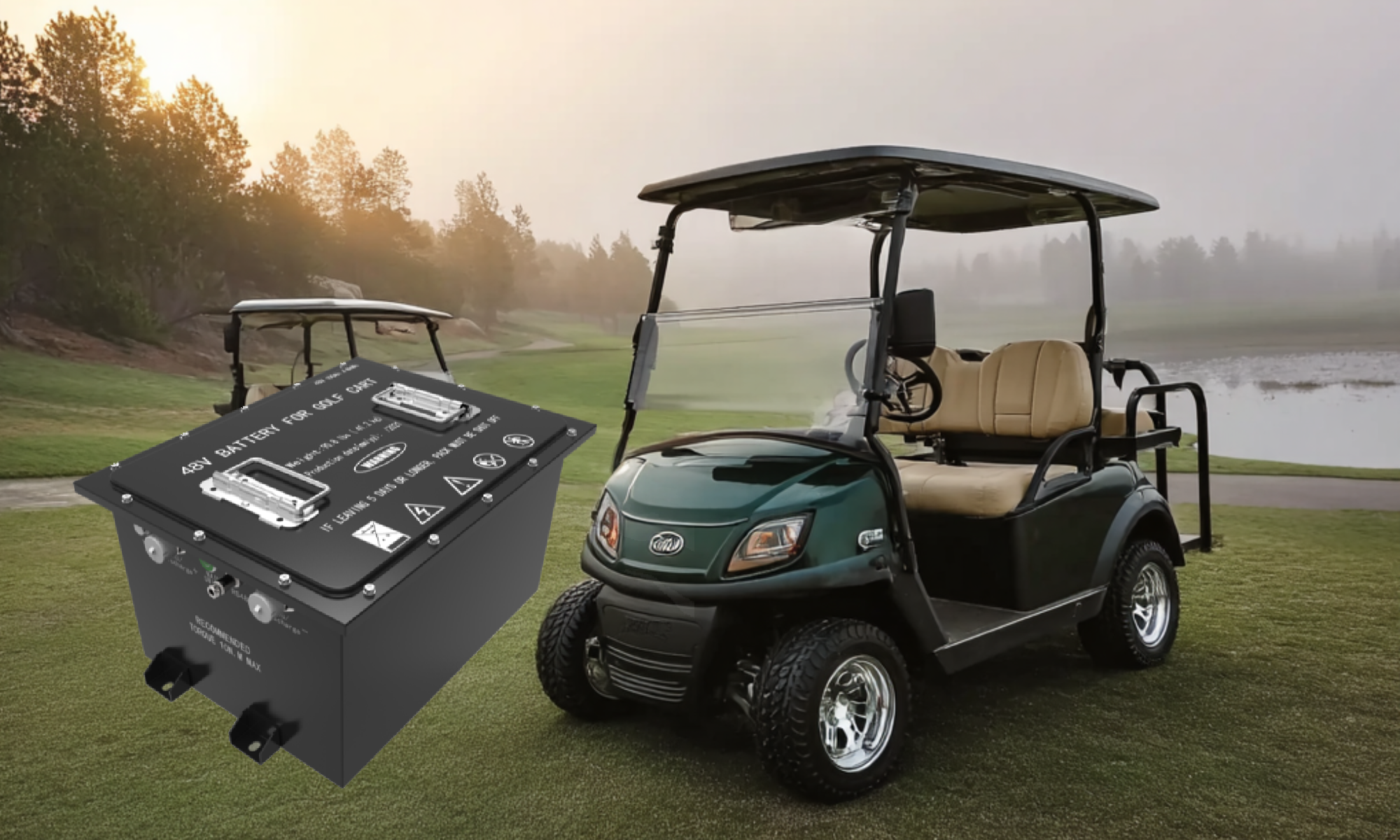

Lithium Iron Golf Cart Battery System

Product Parameters
Rated Voltage
51.2V
Rated Energy
5.15kWh
Continuous Charge Current
100A
Continuous Discharge Current
100A
Charging Operating Temperature
-0~60°C
Discharging Operating Temperature
-20~60°C
System Dimensions
460×343×247mm
System Weight
41.2±2Kg

Lithium-ion Battery System for Warehouse Forklifts

Product Parameters
Rated Voltage
51.2V
Rated Energy
28.67kWh
Continuous Charge Current
300A
Continuous Discharge Current
300A
Charging Operating Temperature
0~60°C
Discharging Operating Temperature
-20~60°C
System Dimensions
810×465×590mm
System Weight
320±8Kg

Passenger Vehicle Battery System

Product Parameters
Rated Voltage
350.4V
Rated Energy
54.66kWh
Continuous Charge Current
156A
Continuous Discharge Current
156A
Charging Operating Temperature
-20~60°C
Discharging Operating Temperature
-20~60°C
System Dimensions
1814×1011×274mm
System Weight
350±5kg

Three-wheeler and Logistics Vehicle Battery System

Product Parameters
Rated Voltage
328.4V
Rated Energy
22.66kWh
Continuous Charge Current
34.5A
Continuous Discharge Current
60A
Charging Operating Temperature
-0~60°C
Discharging Operating Temperature
-20~60°C
System Dimensions
783×586×362mm
System Weight
196±5kg

Fishing Boat Energy Storage System

Product Parameters
Rated Voltage
57.6V
Rated Capacity
210Ah
Rated Energy
12.09kWh
Continuous Charge Current
210A
Continuous Discharge Current
210A
Charging Operating Temperature
-20~60°C
Discharging Operating Temperature
0~60°C
System Dimensions
-20~60°C
System Weight
110±5Kg
