Cell

Cell products build AI smart factories with cutting-edge tech per top industry standards, leverage next-gen smart manufacturing to realize fully autonomous production, and achieve ultimate efficiency, top quality and optimal cost.

  • 01 Automation

    Automation rate over 98%; each line compatible with multiple models.

  • 02 Digitalization

    Full process digitized (demand to sales) for triple integration of commerce, information and logistics.

  • 03 Intelligentization

    Batch control for consistency powers smart manufacturing, ensuring safety and reliability.

Product Parameters
Product Specifications
PF288-588A
Rated Capacity (Ah)
588Ah
Charge/Discharge Rate (P)
0.5P
Energy Efficiency (0.5P)
≥94.5%
Cycle Life
12000
Dimensions (W*L*H mm)
72.5*288*216.3mm
Weight (kg)
10.1kg
Testing and Certification
GB/UN38.3/UL/IEC
Product Parameters
Product Specifications

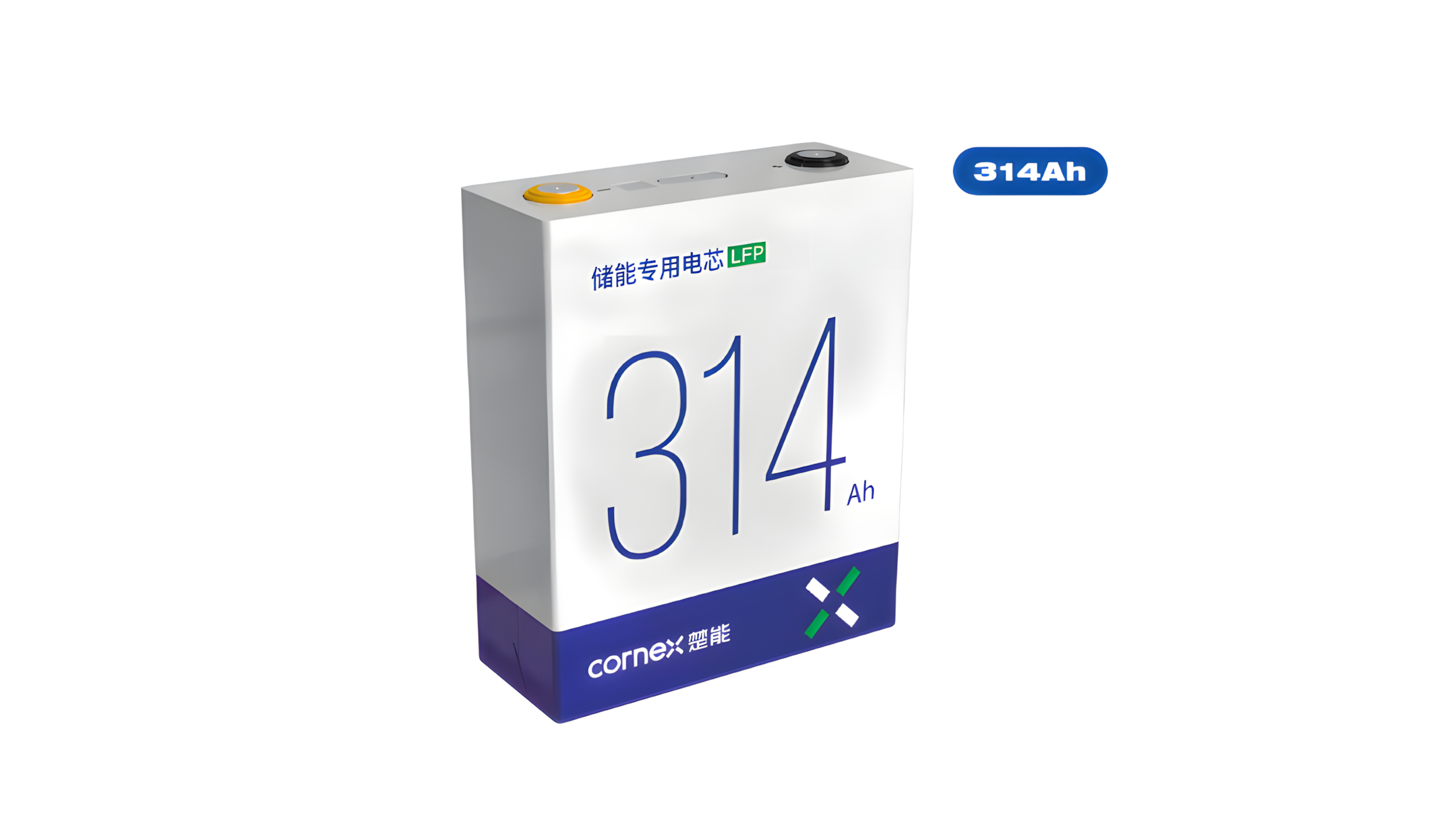

PF173-314A
Rated Capacity (Ah)
314Ah
Charge/Discharge Rate (P)
0.5P
Energy Efficiency (0.5P)
≥94.5%
Cycle Life
12000
Dimensions (W*L*H mm)
71.7*174.4*207.2mm
Weight (kg)
5.6kg
Testing and Certification
GB/UN38.3/UL/IEC
Product Parameters
Product Specifications
PF160-100A
Rated Capacity (Ah)
100Ah
Charge/Discharge Rate
0.5C/1C
Energy Efficiency (0.5P)
≥94%
Cycle Life
6000
Dimensions (W*L*H mm)
50*160.6*118.5mm
Weight (kg)
2kg
Testing and Certification
GB/UN38.3/UL/IEC
Product Parameters
Product Specifications

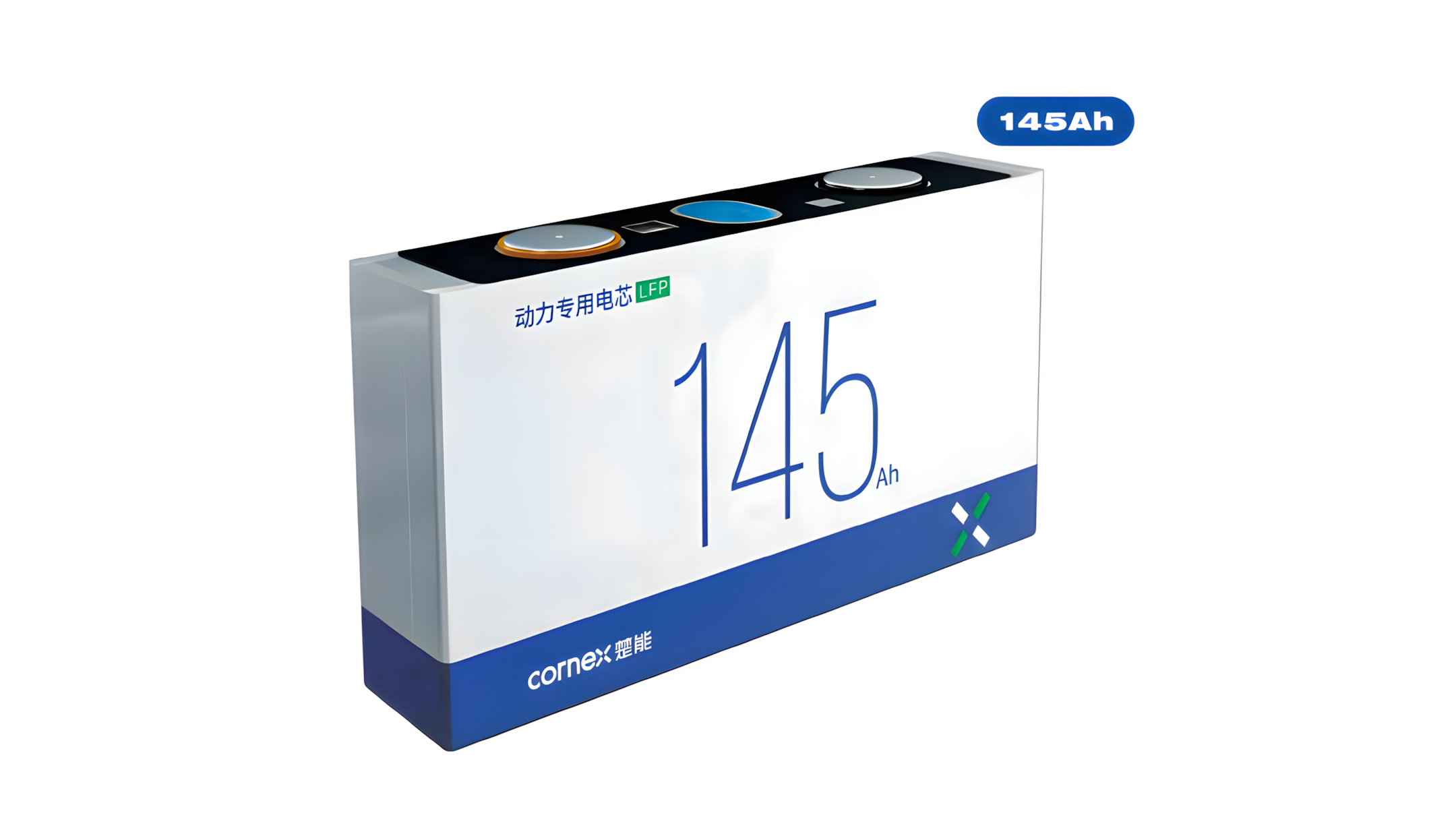

PF210-145A
Rated Capacity (Ah)@1/3C
145Ah
Continuous Charge Rate (C)
6C
Pulse Discharge Rate (C)
8C
Cycle Life
≥2000
Dimensions (W*L*H mm)
46*210*116.7mm
Gravimetric Energy Density (Wh/kg)
185Wh/kg
Testing and Certification
GB 38031, GB/T 31484, GB/T 31486, RoHS
Product Parameters
Product Specifications

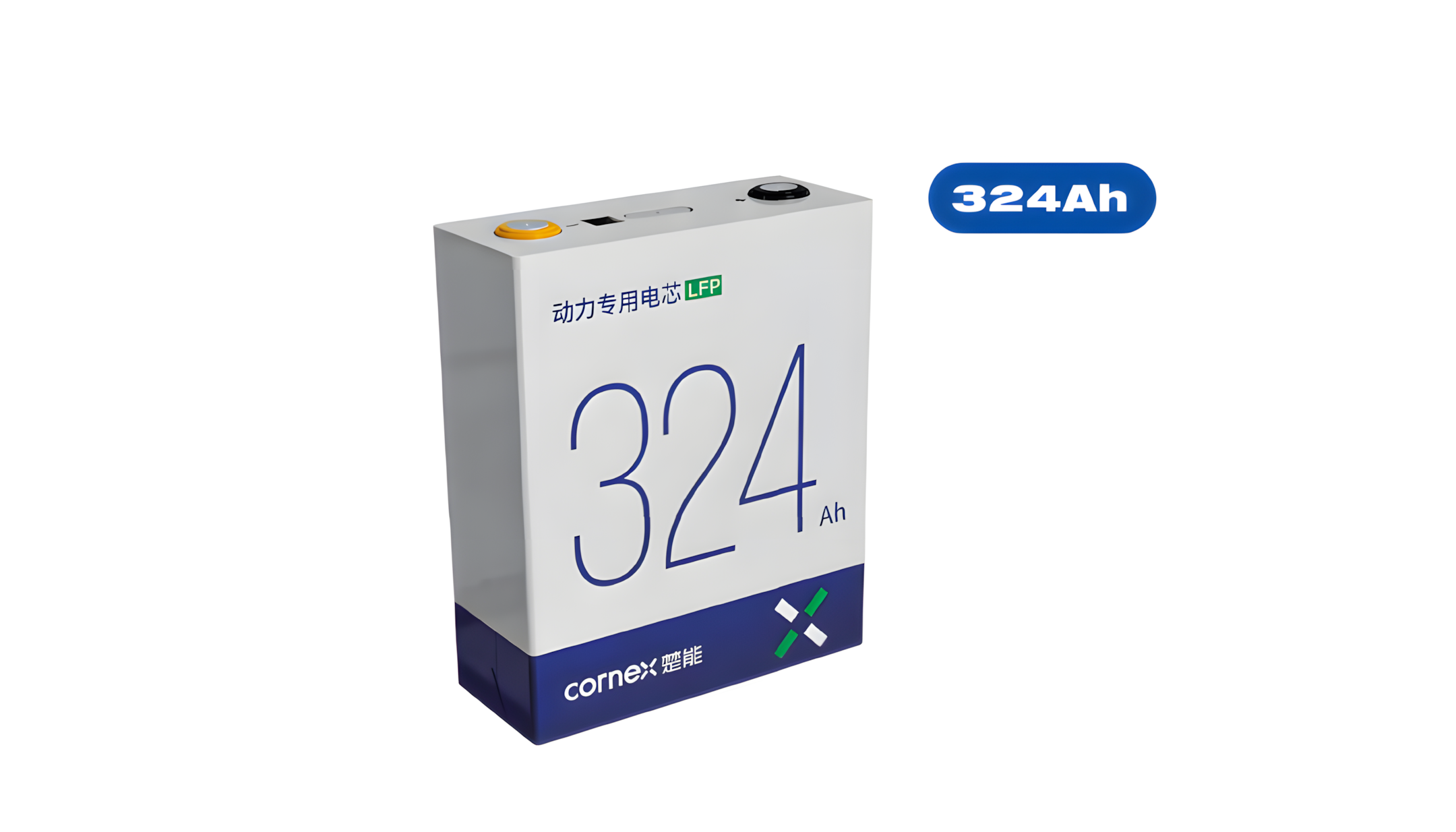

PF173-324A
Rated Capacity (Ah)
324Ah
Charge/Discharge Rate (C)
1.3SC/1C
Cycle Life
≥6000
Dimensions (W*L*H mm)
71.7*174.4*207.2mm
Weight (kg)
5.55kg
Testing and Certification
GB 38031、GB/T 31484、GB/T 31486、GB 38032
Product Parameters
Product Specifications

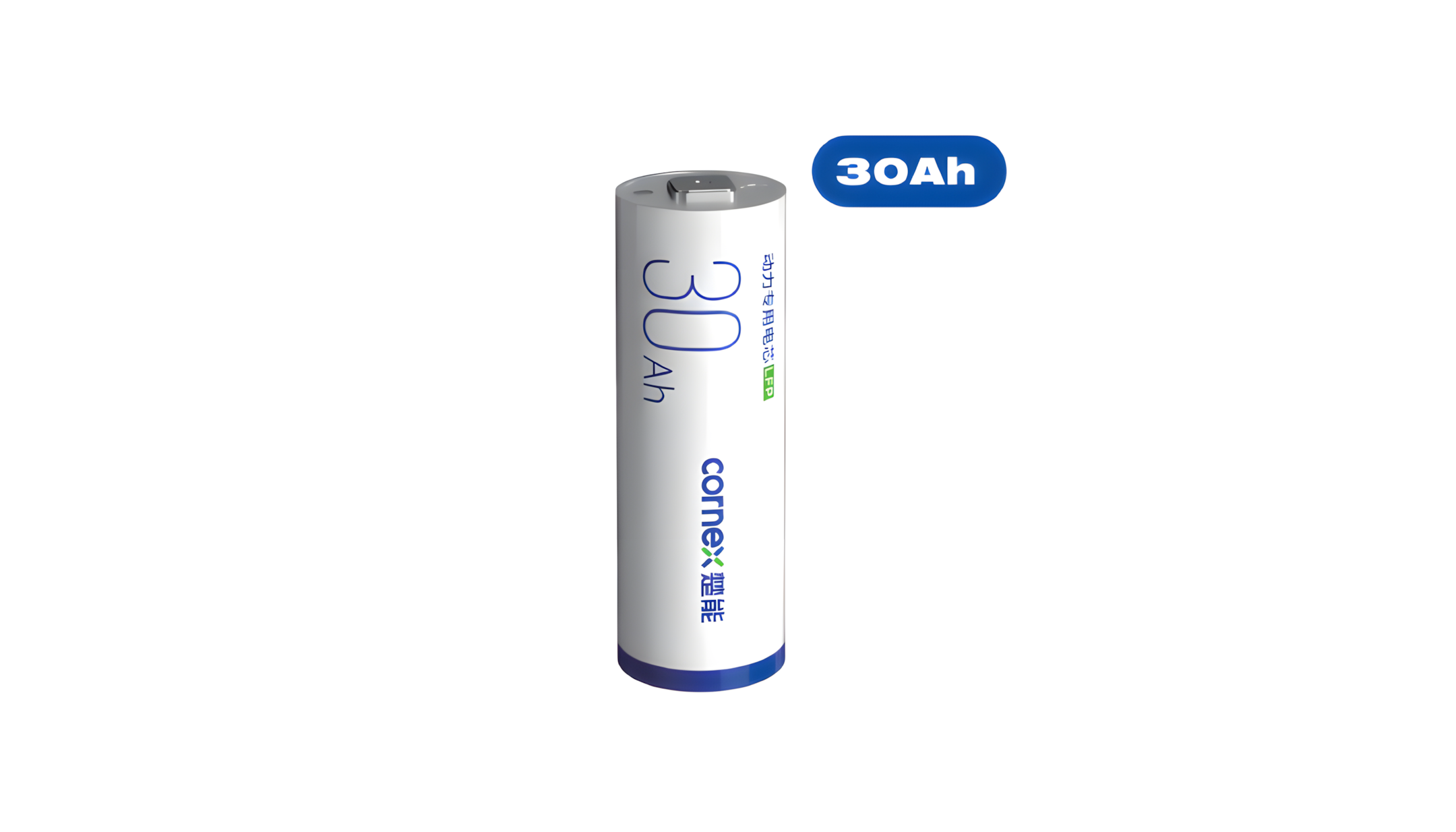

RF46-30A
Rated Capacity (Ah)
30Ah
Charge/Discharge Rate (C)
2C/2.8C
Cycle Life
≥3000
Dimensions (D*H mm)
Φ46*135mm
Weight (kg)
0.5kg
Testing and Certification
GB 43854
